H-Series vs D-Series vs M-Series vs P-Series vs R-Series: Which Reboss Awning Do You Need?
Choosing an awning isn't simply a question of picking a colour and deciding how wide it needs to be.
One of the most important factors is projection .
An awning protecting a small window doesn't need to extend as far from the wall as one covering a patio, walkway or large sliding door.
That's why Reboss offers several awning systems rather than a single one-size-fits-all design.
The current range includes the H-Series, D-Series, M-Series, P-Series and R-Series , with projections ranging from approximately 700 mm to 1500 mm.
Here's how to understand the differences and choose the right Reboss awning for your application.
What Does Awning Projection Mean?
Projection is the distance the awning extends outward from the wall.
For example, a 700 mm projection extends approximately 700 mm away from its mounting surface.
Why does this matter?
Because projection determines how much overhead coverage the awning can provide.
A small projection can work very well above a window, while a larger doorway, balcony or patio may require substantially more coverage.
The goal isn't necessarily to choose the largest projection.
It's to choose the right projection for the area you're protecting .
Reboss Awning Sizes at a Glance
According to the current Reboss product range, the five main systems offer the following projections:
| Reboss Series | Projection | Typical Application |
|---|---|---|
| H-Series | 700 mm | Compact windows and smaller openings |
| D-Series | 1000 mm | Windows and doors requiring additional coverage |
| M-Series | 1000 mm | Larger residential and architectural applications |
| P-Series | 1200 mm | Larger doors, balconies and patio applications |
| R-Series | 1500 mm | Large openings, patios and areas requiring maximum projection |
These application examples are a practical guide rather than a substitute for measuring the individual installation.
Now let's look at each system more closely.
H-Series: Compact Protection
With a projection of approximately 700 mm , the H-Series is the most compact option in the range.
That makes it particularly suitable for smaller windows and areas where substantial outward projection isn't necessary.
A compact awning can help protect the opening while remaining visually proportional to the building.
The H-Series is therefore worth considering when you want a neat architectural feature rather than a large canopy dominating the façade.
H-Series may suit:
- Smaller windows
- Narrow openings
- Areas with limited mounting space
- Applications requiring modest projection
D-Series: More Coverage for Windows and Doors
The D-Series increases projection to approximately 1000 mm .
That extra depth makes it useful where a 700 mm canopy wouldn't provide enough coverage.
This could include larger windows, exterior doors and entrances exposed to sun and rain.
A 1000 mm projection also creates a more substantial visual feature while remaining relatively compact.
D-Series may suit:
- Larger windows
- Entrance doors
- Exterior doors
- Openings exposed to stronger weather
- Applications requiring a 1-metre projection
M-Series: 1000 mm Projection with an Aluminium Bracket System
The M-Series also provides approximately 1000 mm projection , but its construction differentiates it from the smaller systems.
Reboss specifies aluminium brackets for the M-Series, while the H- and D-Series use engineered PolyComposite brackets.
This gives customers another option when selecting a system for medium-projection applications.
M-Series may suit:
- Residential windows
- Doorways
- Architectural installations
- Applications where an aluminium bracket system is preferred
Because D- and M-Series share a similar projection, your choice should consider the bracket design, dimensions, aesthetic requirements and overall installation rather than projection alone.
P-Series: Greater Coverage at 1200 mm
Moving up to the P-Series increases projection to approximately 1200 mm .
That additional 200 mm compared with the D- and M-Series can make an important difference where more substantial coverage is required.
The P-Series becomes particularly interesting for larger doors, balconies and smaller patio areas.
It can also create a stronger architectural feature on larger façades where a compact awning could look undersized.
P-Series may suit:
- Large doors
- Sliding doors
- Balconies
- Entertainment areas
- Smaller patios
- Larger windows requiring deeper coverage
If you're specifically considering outdoor entertainment areas, our guide to choosing patio awnings in South Africa covers the other factors you should consider.
R-Series: Maximum Projection in the Reboss Range
At approximately 1500 mm , the R-Series offers the greatest projection of these five systems.
That makes it a logical option to investigate when covering larger openings and outdoor areas.
The extra projection can be particularly useful where the awning needs to extend farther from the building to provide meaningful overhead coverage.
R-Series may suit:
- Patios
- Wide sliding or stacking doors
- Larger entrances
- Walkways
- Commercial applications
- Areas requiring substantial projection
However, bigger isn't automatically better.
The correct awning still depends on the dimensions, mounting surface, orientation and exposure of the individual property.
PolyComposite vs Aluminium Brackets
Another important distinction between the Reboss systems is bracket construction.
The H-Series and D-Series use engineered PolyComposite brackets , while the M-, P- and R-Series use aluminium bracket systems .
That means customers shouldn't compare the products purely by projection.
The bracket system, appearance and intended application should also form part of the selection process.
Which Awning Size Is Best for a Window?
For a typical window, start by considering the H-Series.
Its 700 mm projection can provide compact coverage without overwhelming the façade.
Larger windows or openings requiring greater protection may justify moving to a D- or M-Series system with approximately 1000 mm projection.
Orientation also matters.
A window exposed to low afternoon sun may require a different approach from one receiving mostly overhead midday sunlight.
Which Reboss Awning Is Best for a Door?
Doors generally benefit from greater projection because people need protected space immediately outside the opening.
A D- or M-Series may therefore be worth considering for many doorway installations.
For wider sliding doors or entrances where more substantial overhead coverage is required, the P-Series or R-Series may be more appropriate.

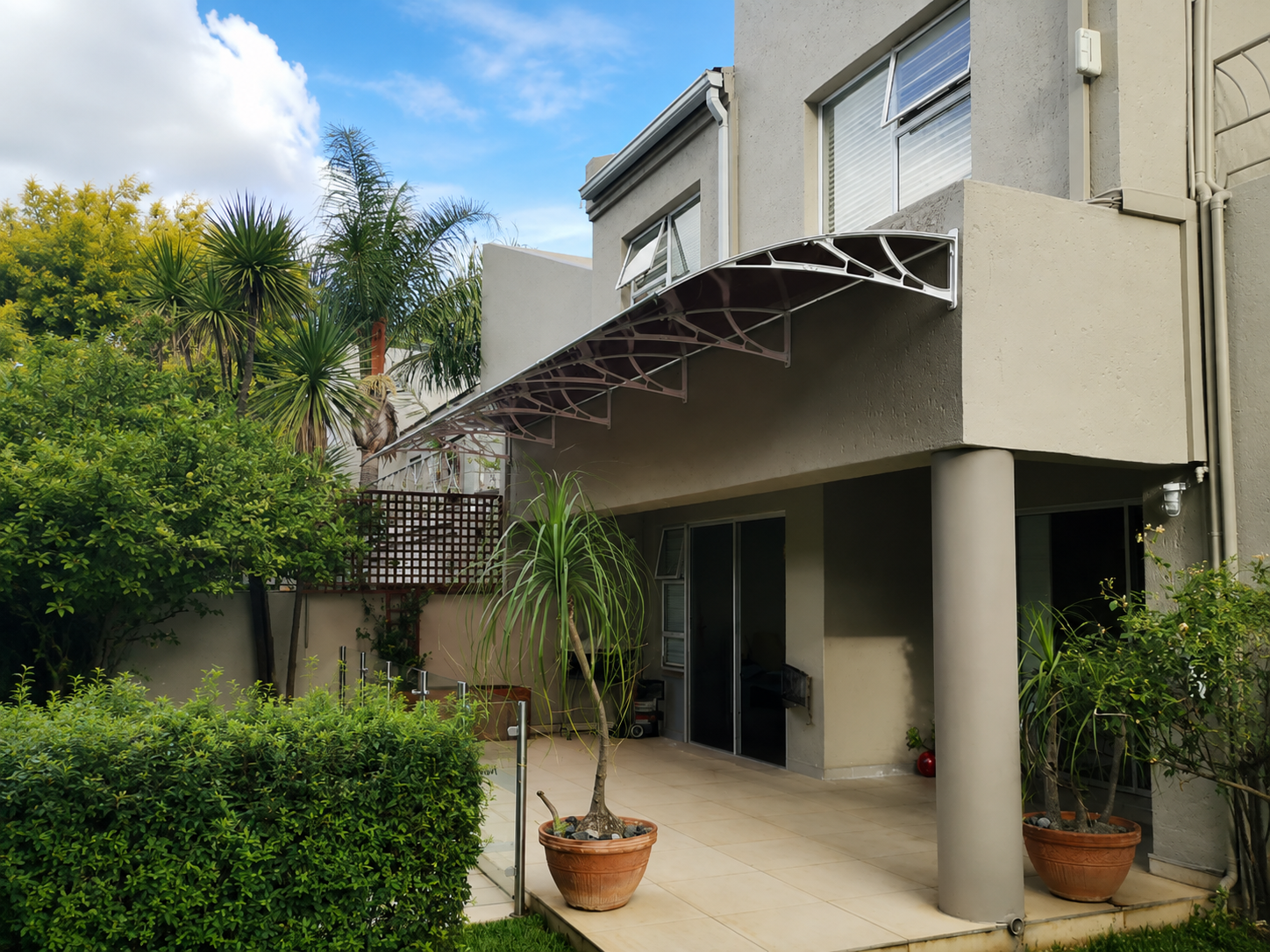

Which Reboss Awning Is Best for a Patio?
Patios generally require considerably more coverage than individual windows.
That's where the P-Series and R-Series become particularly relevant.
With projections of approximately 1200 mm and 1500 mm respectively, these systems can provide greater overhead coverage while retaining the characteristic Reboss modular awning design.
The overall patio dimensions still need to be considered, especially if you're trying to protect furniture or an entertainment area rather than only the opening behind it.
Width Is Just as Important as Projection
Projection gets a lot of attention, but don't forget width.
The awning should extend sufficiently across the opening to provide useful protection.
An awning exactly the same width as a window can leave the edges more exposed to angled sun and rain.
For very wide areas, the design may involve multiple units depending on the application.
Measure the complete opening and surrounding wall area before deciding on the final configuration.
Consider the Covering Material Too
Once you've selected the appropriate system and projection, you'll also need to choose the covering material.
Reboss awnings can be configured with different sheeting options depending on the system and desired result.
Your choice can influence:
- Natural light
- Shade
- Appearance
- Impact resistance
- UV protection
- Heat transmission
- Overall architectural style
If you're deciding between the two most common options, see our Acrylic vs Polycarbonate Awnings guide.
Don't Choose an Awning Based on Size Alone
A 1500 mm awning isn't automatically superior to a 700 mm awning.
A well-designed installation uses the smallest or largest system appropriate for the job.
Before choosing, consider:
Opening width: How wide is the window, door or patio?
Required projection: How far does protection need to extend?
Sun direction: Where does direct sunlight come from?
Rain exposure: How exposed is the opening?
Mounting area: Is there sufficient wall space for the system?
Aesthetics: Does the awning remain proportional to the building?
Material: Do you want transparency, tinting or maximum shade?
Together, these factors will give you a much better indication of the right system.
Choosing Your Reboss Awning
The Reboss range makes it possible to match the awning more closely to the application.
For smaller openings, the H-Series provides a compact 700 mm projection .
The D- and M-Series increase that to approximately 1000 mm .
The P-Series extends to approximately 1200 mm , while the R-Series provides approximately 1500 mm projection for applications requiring greater coverage.
Rather than simply asking, "Which is the biggest awning?", the better question is:
Which Reboss system gives my particular window, door or outdoor area the right amount of protection?
Once you know your measurements and intended application, that decision becomes considerably easier.
Find the Right Reboss Awning for Your Property
Explore the complete H-, D-, M-, P- and R-Series range, compare specifications and choose a system suited to your installation.
